ESP32 Vitals Monitor

An ESP32-based vitals monitor that reads heart rate, SpO2, body temperature, and a single-lead ECG. A MAX30102 (heart rate and SpO2) and an MLX90614 (body temperature) share one I2C bus, with an AD8232 ECG front end sampled on its own ADC pin. Rather than joining a home network, the ESP32 starts its own WiFi access point and serves a live dashboard itself over a WebSocket, so it can be checked from a laptop or phone browser at 192.168.4.1 with no router, app, or internet connection needed.

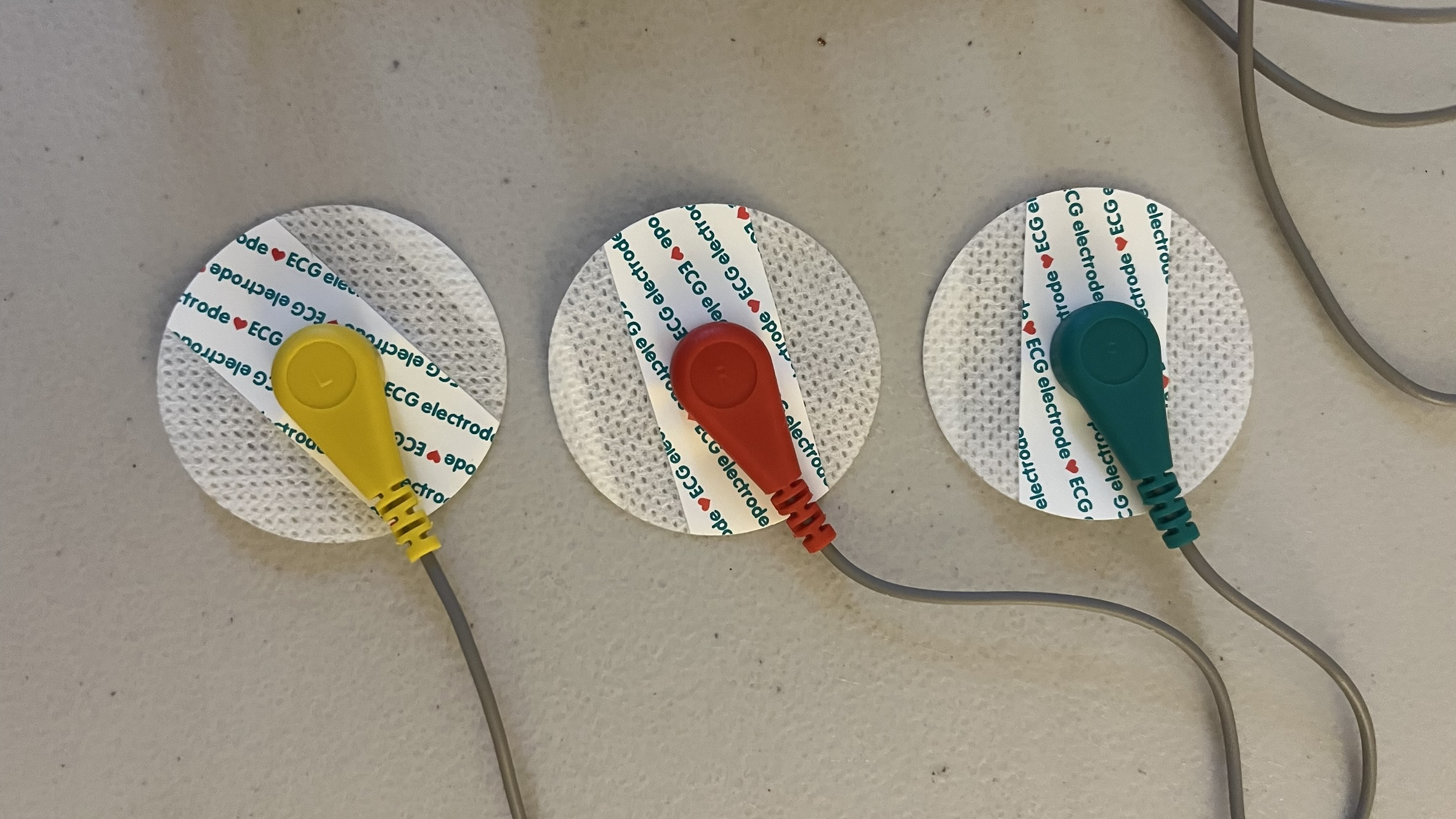

Electrode placement. The three ECG pads went on like this: red (RA) below the right collarbone, yellow (LA) below the left collarbone, and green (RL, the reference) on the lower left side of the torso, over a rib rather than muscle. Skin was wiped with an alcohol pad and left to dry before sticking each pad down; contact quality mattered far more than getting the placement exact to the millimetre.

Hardware and wiring

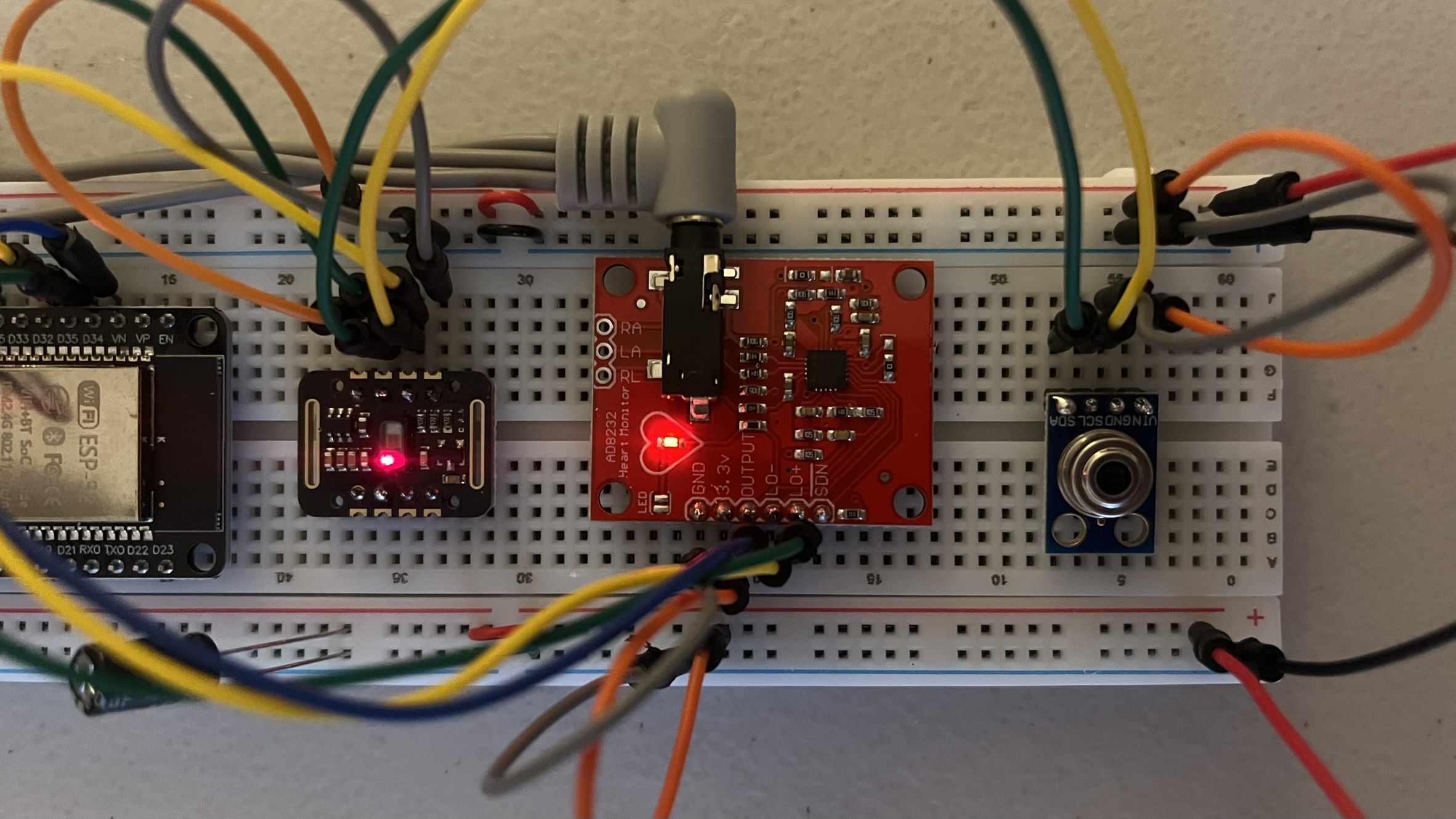

The MAX30102 and MLX90614 share the same I2C bus, running at I2C_SPEED_STANDARD (100kHz) rather than 400kHz: the extra capacitance and noise from the breadboard jumper wiring made the MAX30102’s begin() reliably fail at 400kHz, even though both sensors ACKed fine once running. The AD8232’s SDN pin was left unconnected, since it has its own onboard pull-up, and LO+/LO- got no external pull resistors, since the AD8232 drives them itself.

Firmware

Built on ESPAsyncWebServer and AsyncTCP (the ESP32Async/mathieucarbou fork, since the older forks wouldn’t compile against this ESP32 Arduino core), the SparkFun MAX3010x library, and the Adafruit MLX90614 library.

The ECG lead-off pins get debounced before being trusted, since a single noisy read would otherwise flicker the “lead off” warning constantly:

if (rawOff == leadOffRawLast) {
  if (leadOffStableCount < LEADOFF_DEBOUNCE) leadOffStableCount++;
} else {
  leadOffRawLast = rawOff;
  leadOffStableCount = 0;
}
if (leadOffStableCount >= LEADOFF_DEBOUNCE && rawOff != leadOffState) {
  leadOffState = rawOff;
  // ...send the change over WebSocket
}

The dashboard also timestamps each ECG sample as it arrives in the browser instead of assuming a fixed 250Hz, so the timebase stays accurate even if the ESP32’s real send rate drifts slightly under load, since a slow I2C read or WiFi send can stall the loop for a couple of milliseconds.

Using the dashboard

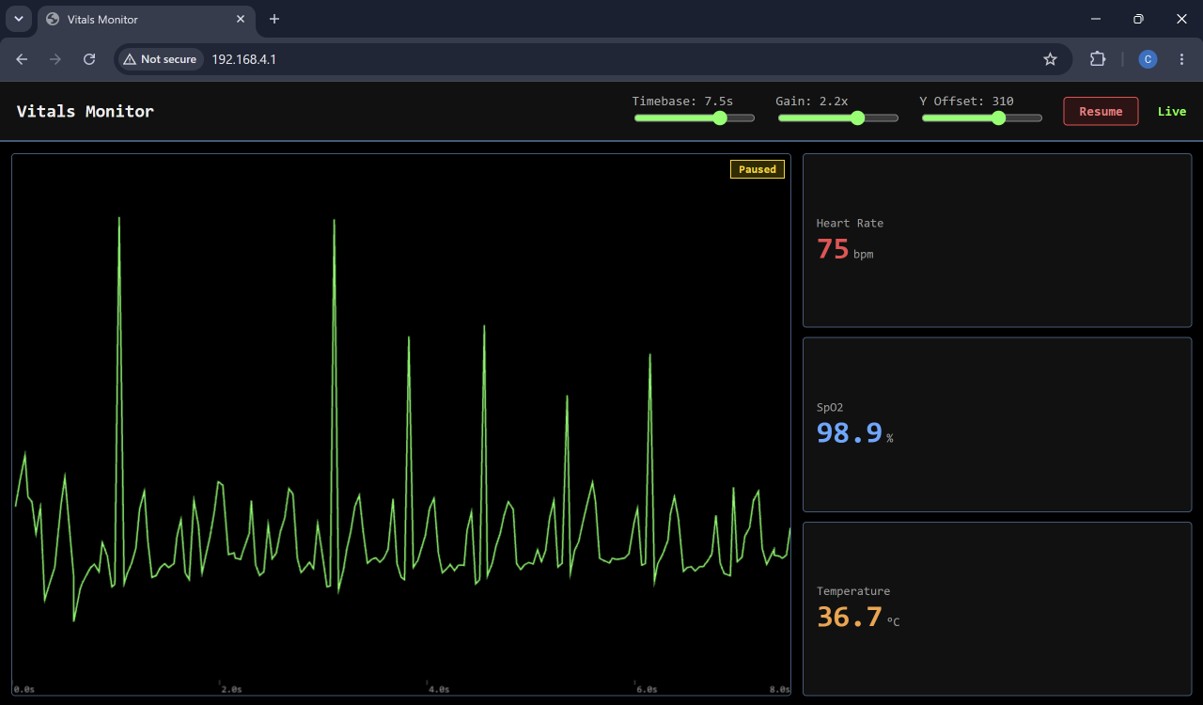

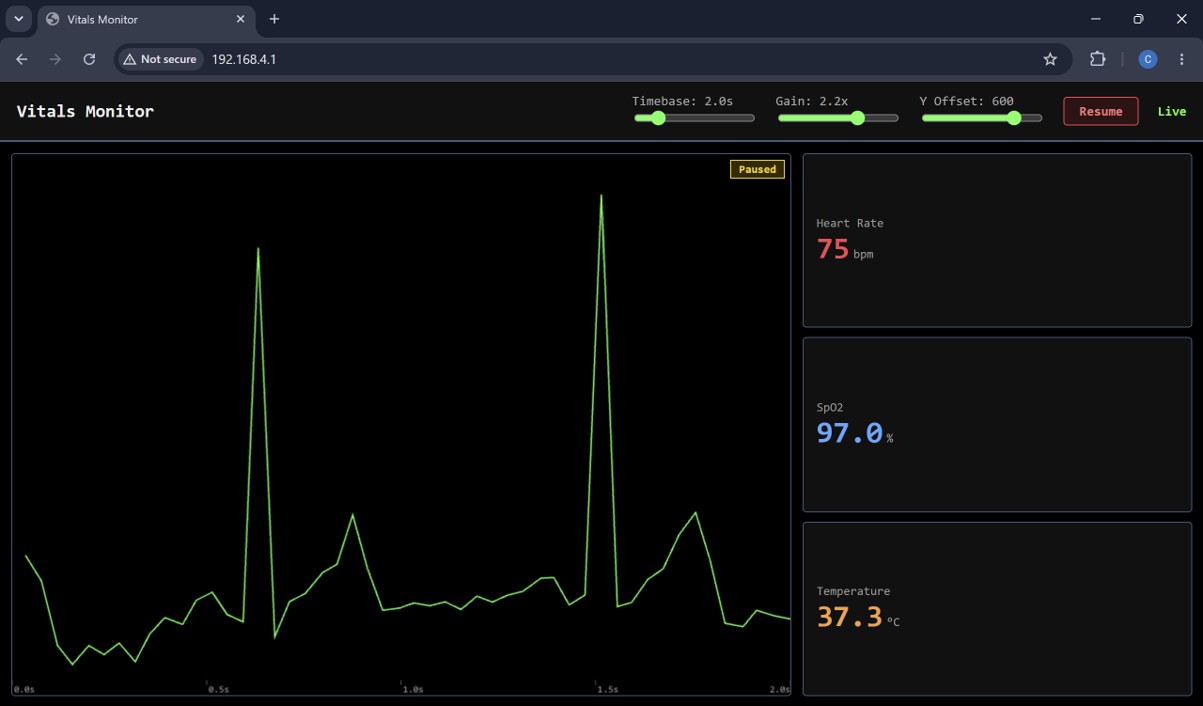

Heart rate, SpO2, and temperature update live alongside the ECG trace, and four controls shape how that trace reads. Timebase sets how many seconds of ECG are shown across the screen, from 0.5s to 10s. Gain zooms the vertical scale in or out around the baseline, deliberately not auto-fit, since that would stretch a weak signal to fill the screen on its own; it has to be pulled in manually, giving an honest reflection of how big the real signal actually is. Y offset pans the trace up or down if it’s sitting near the top or bottom of the panel. Pause and resume freezes the display for a closer look: timebase, gain, and offset stay adjustable while paused, and data keeps arriving in the background, so resume jumps straight back to live instead of catching up.

Limitations

This isn’t a medical device, it’s a coursework and hobby project. The SpO2 reading uses the standard empirical ratio-of-ratios formula and isn’t calibrated against a reference oximeter, and the ECG is a single unfiltered lead with no clinical-grade signal processing, so all three readings should be treated as indicative only, not diagnostic.

Controls: timebase, gain, and Y offset shape the ECG trace; pause and resume freezes the display without stopping data collection underneath.

Stack: ESP32 (Arduino), ESPAsyncWebServer, AsyncTCP, SparkFun MAX3010x, Adafruit MLX90614

Status: complete (prototype)

Repo: github.com/robertscharlie/esp-vitals-monitor
